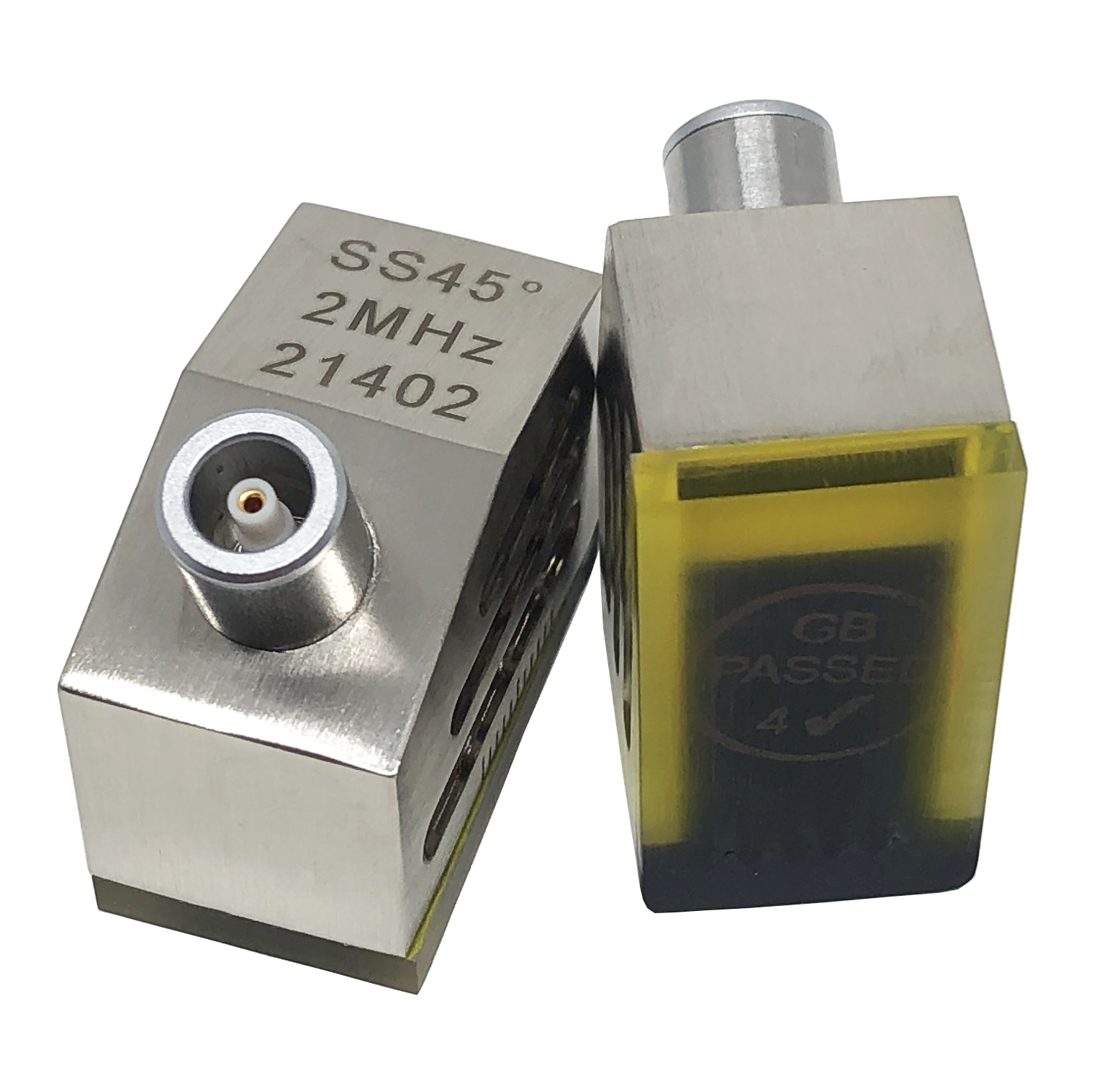

SS

Angle beam shear wave probe with Ø10 mm single crystal in stainless steel housing. A very popular and widely used probe with high sensitivity and good resolution. Fitted with a Subvis connector as standard or optional Lemo 00.

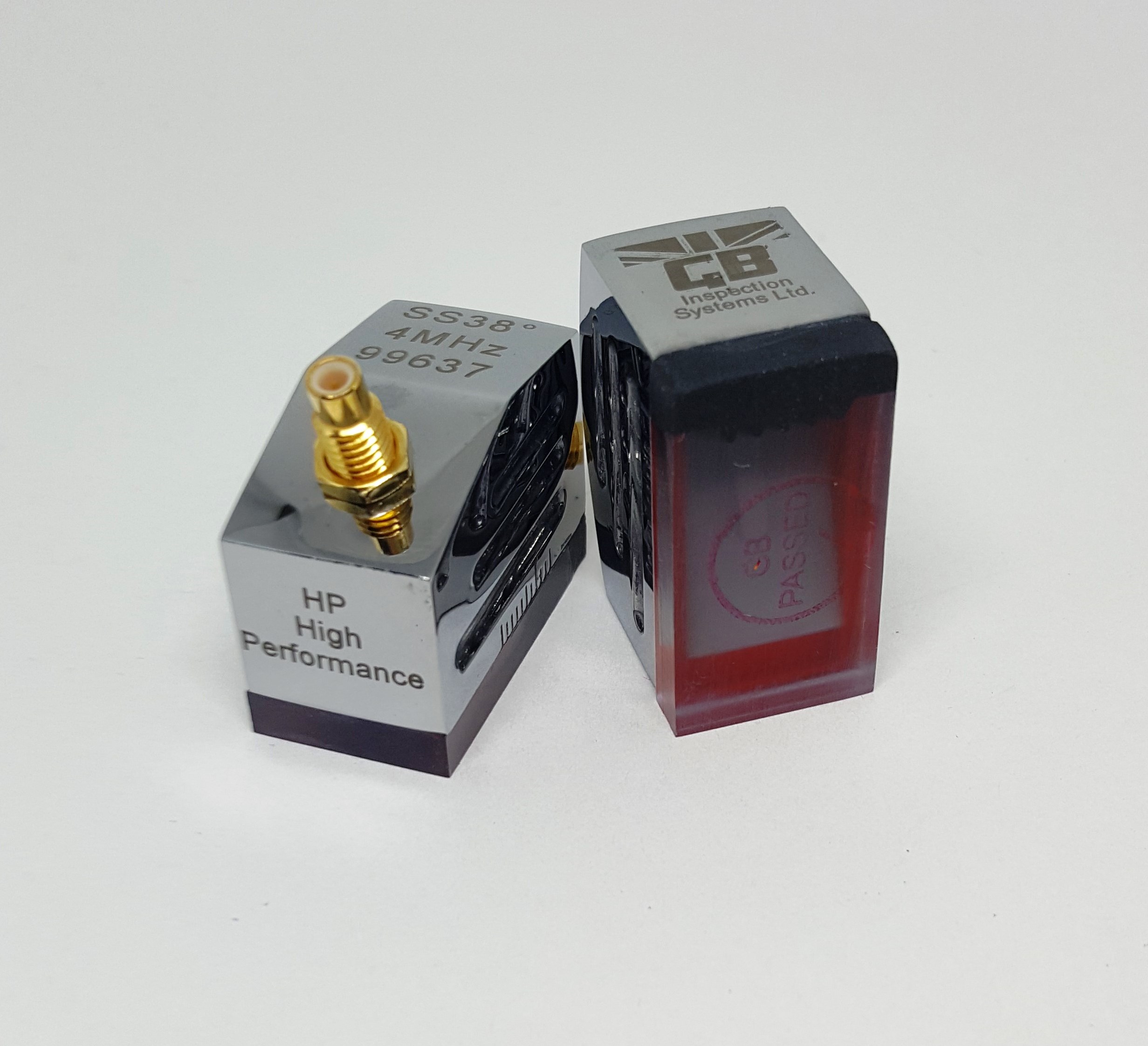

SS-HP

Angle beam shear wave probe with high performance Ø10 mm single crystal in stainless steel housing, offering exceptional sensitivity and high resolution for exact and critical inspections. Fitted with a Subvis connector as standard or optional Lemo 00.

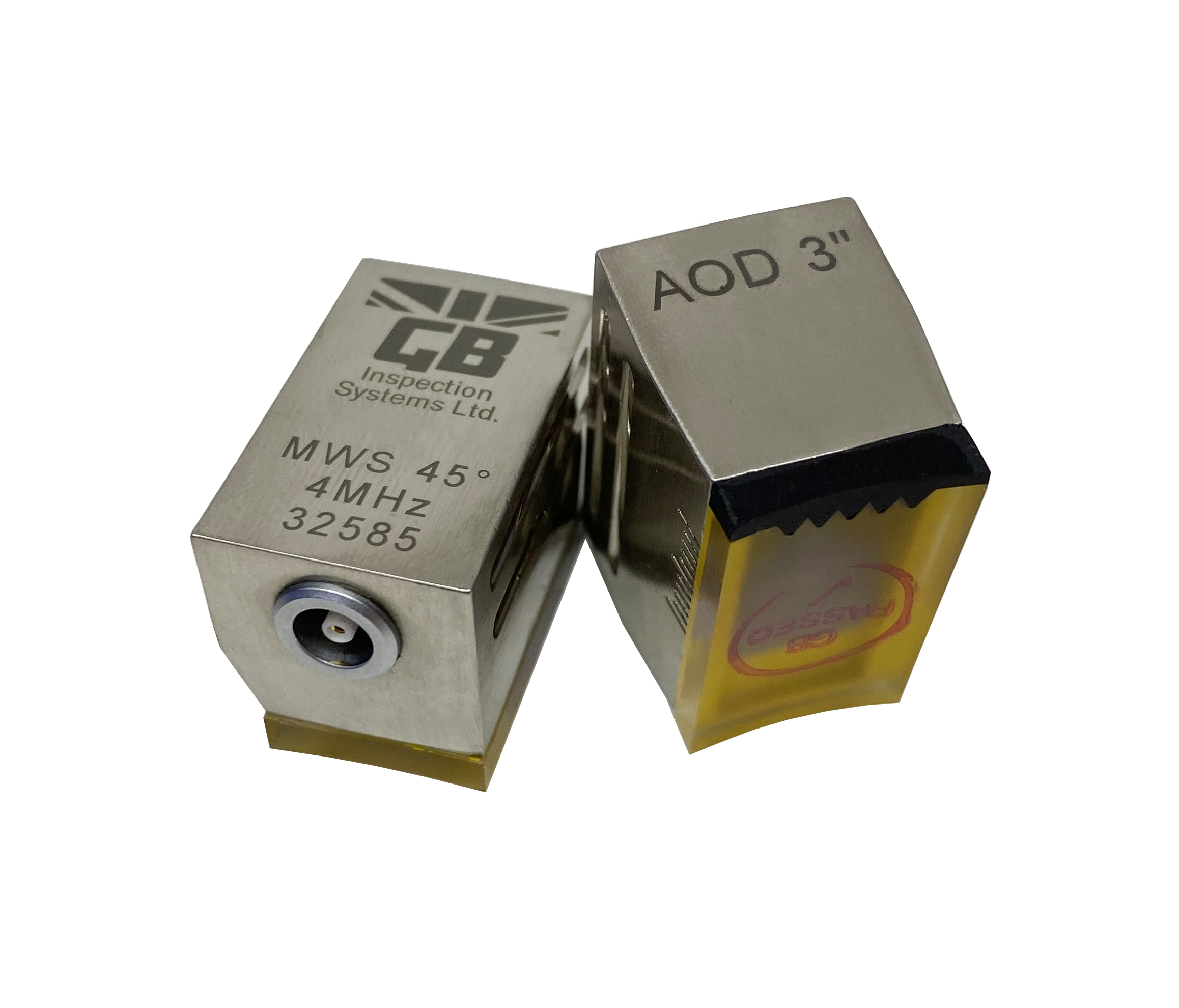

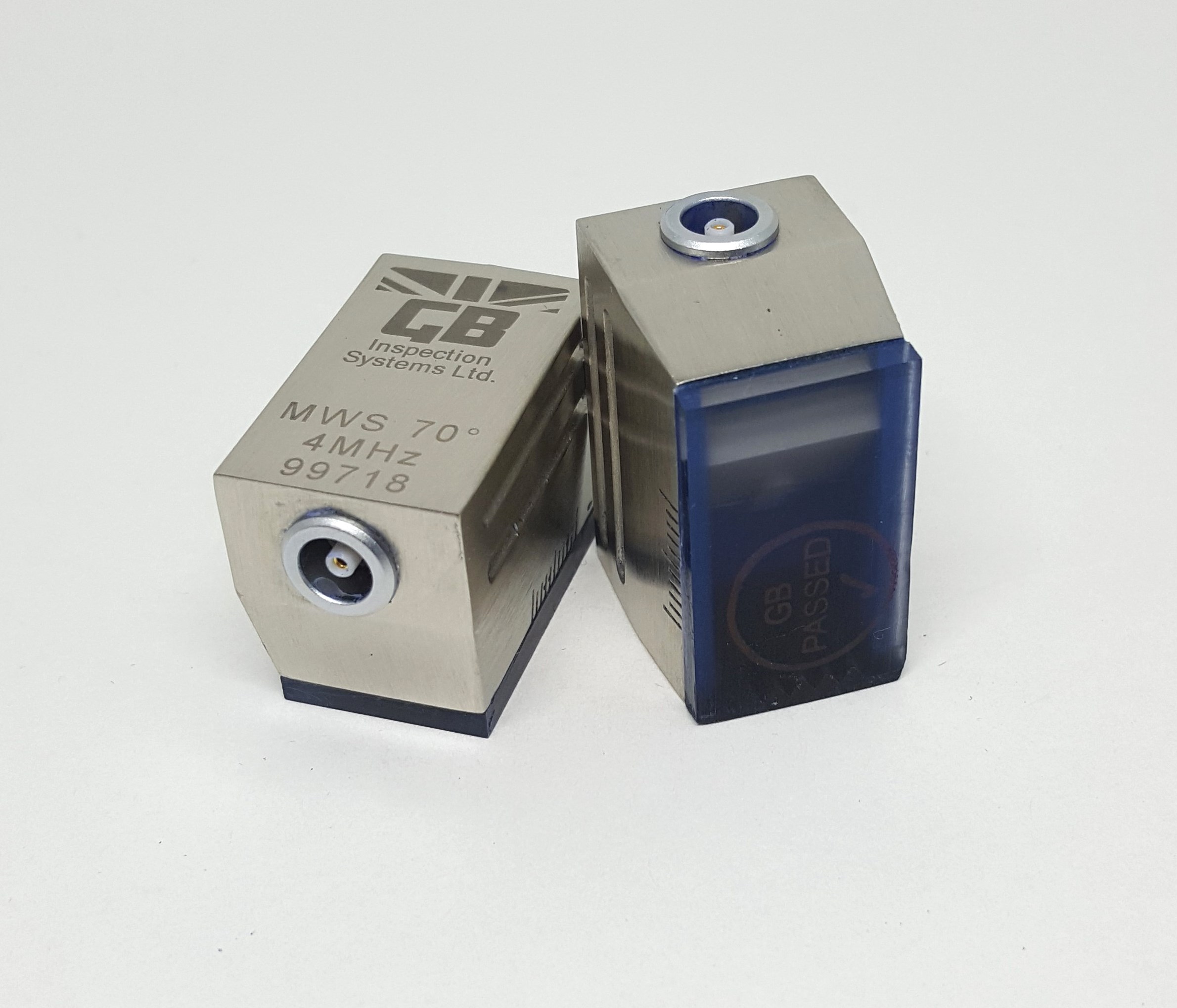

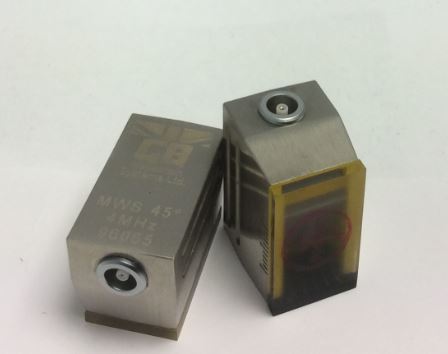

MWS

Euro range angle beam shear wave probe with 8 x 9 mm single crystal in a stainless-steel housing. Fitted with a Lemo 00 connector, giving very good sensitivity and resolution.

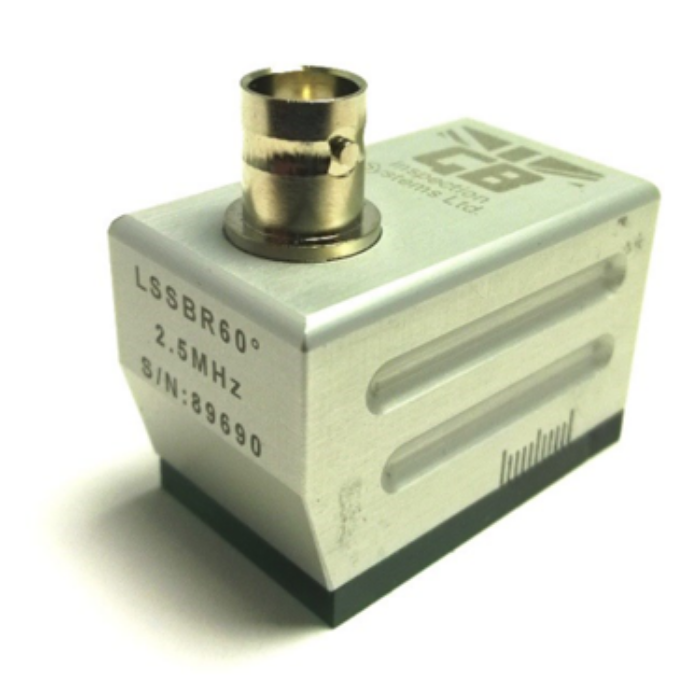

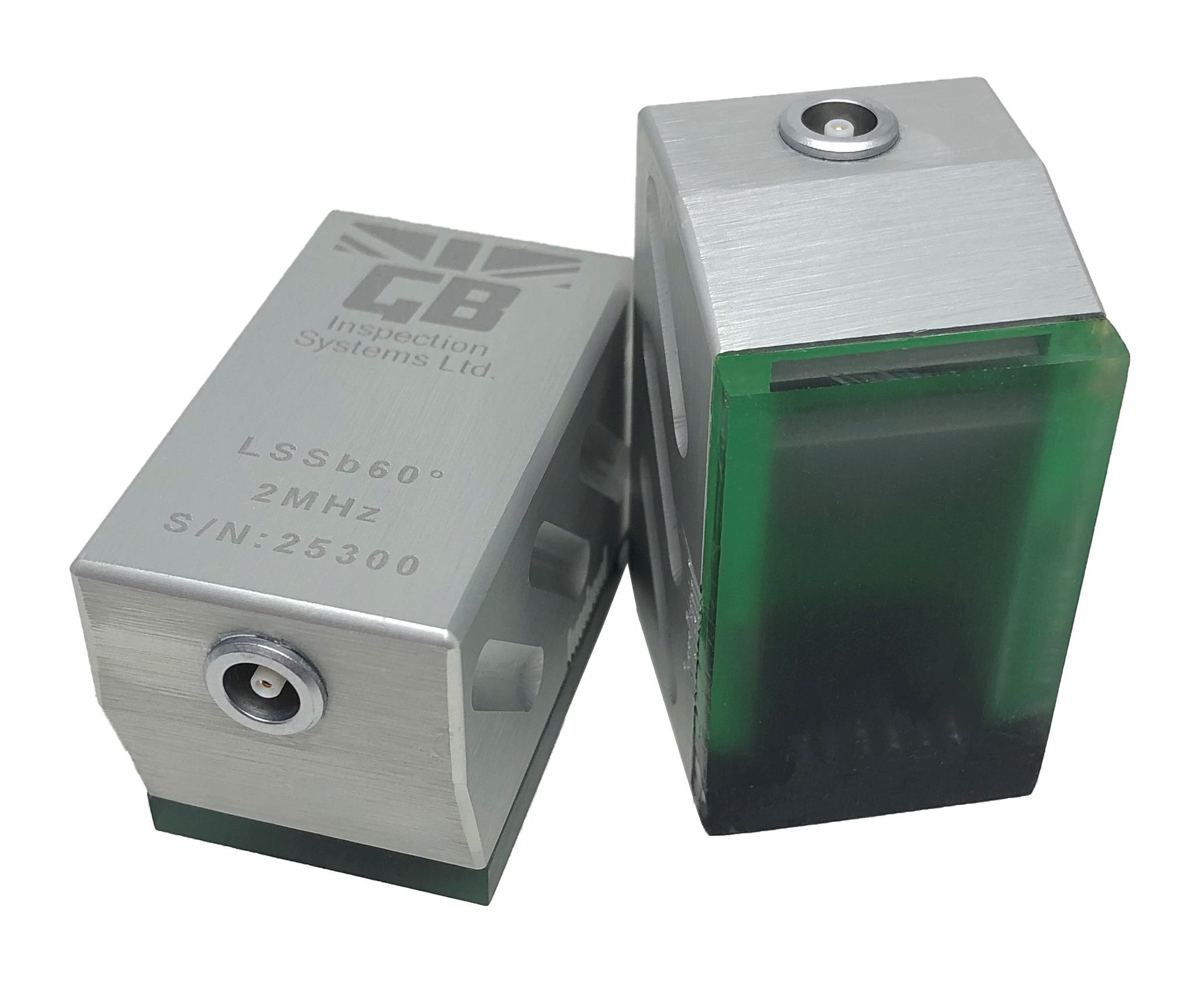

LSS

Angle beam shear wave probe. Medium size Ø15 mm single crystal in aluminum housing with Lemo 00 connector, giving very good sensitivity and resolution.

XLSS

Angle beam shear wave probe. Large size 20 x 20 mm single crystal in aluminum housing with Lemo 01 connector. Good sensitivity and resolution, ideal for larger work where the increased beam width enables faster testing.

MSS

Miniature angle beam shear wave probe with crystal size Ø6.3 mm in a stainless-steel housing. Fitted as standard with a top Subvis connector. End Subvis connector is optional.

SMSS

Sub miniature angle beam shear wave probe with a crystal size of Ø6.3 mm. This is a very small probe with forward index point. Fitted with a 2-meter integral cable and Lemo 01 connector as standard.

MMSS

Sub miniature angle beam shear wave probe with crystal size Ø6.3 mm. This is a low-noise version of the SMSS Probe.  The length of the probe is increased and the index point is further back from the front. It is fitted with a Subvis connector as standard.

SWS

A large single shear wave probe fitted with a 16 x 16 mm crystal

TS

Angle beam twin crystal shear wave probe with 8 x 5 mm (x2) crystal size in stainless steel housing, only available with Subvis connectors. This product has very good sensitivity and resolution especially on near surface and short-range detection.

MWT

Euro Range Angle beam twin crystal shear wave probe with 8 x 5 mm (x2) crystal size in a stainless steel housing, fitted with Lemo 00 connectors. This product has very good sensitivity and resolution especially on near surface and short range detection.

LTS

Angle beam twin crystal shear wave probe. Medium size 7 x 15 mm (x2) crystal.  Aluminum housing with Lemo 00 connectors. This probe has very good sensitivity and resolution especially on near surface and short / medium range detection.

BTP

Boiler Tube Probe (angle beam twin crystal shear wave probe). Designed for the inspection of boiler tubes. Small size and radiused (as standard) to suit 50 – 65 mm diameter pipe. The index point is near to the front of the probe in order to allow inspection up to the weld bead. It has two 4 x 5 mm crystals seated in a stainless-steel housing, fitted with integral 2-meter leads and Lemo 01 connectors as standard.  Also available with a flat probe face.
