Tritex Thickness Gages

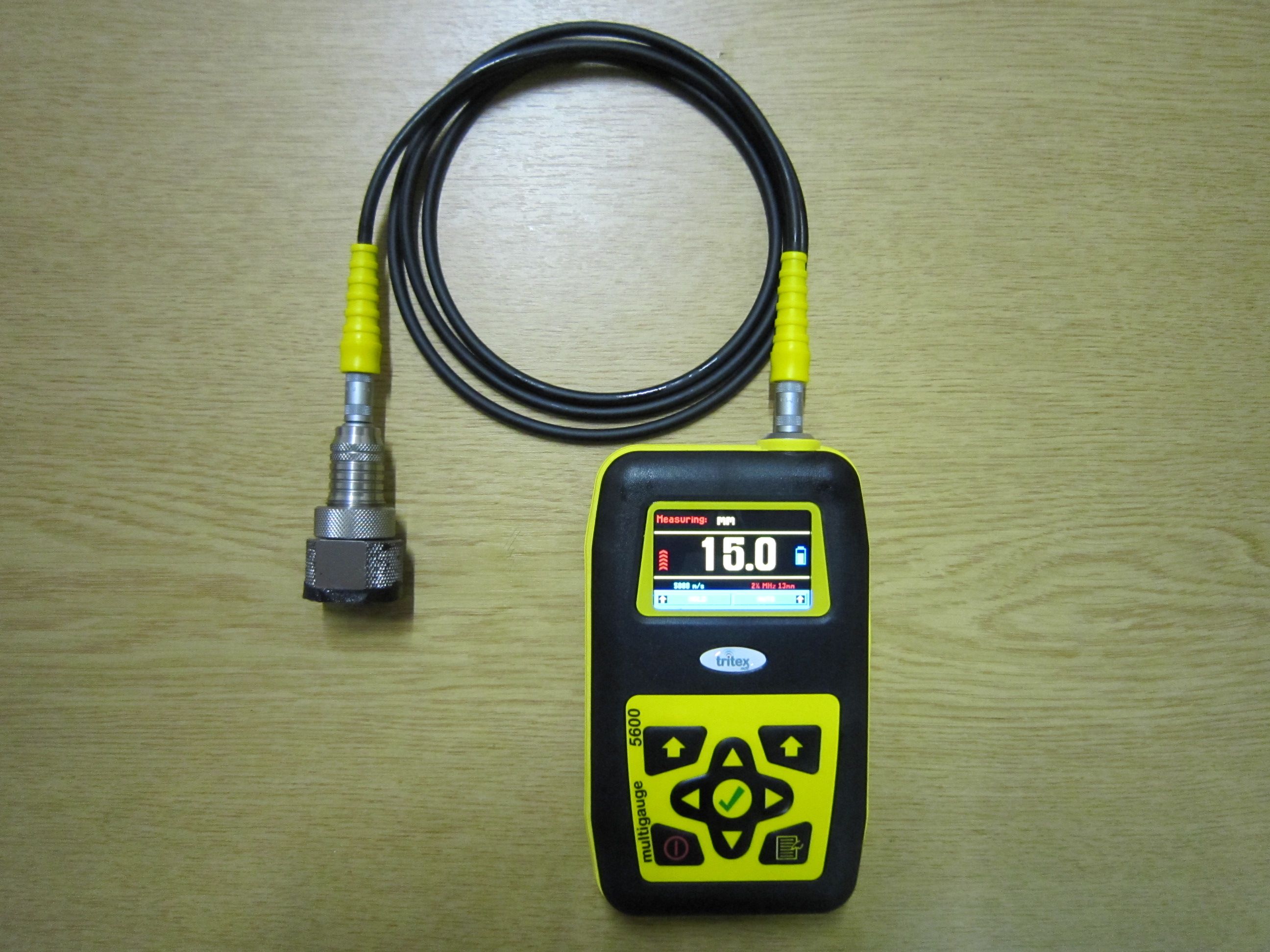

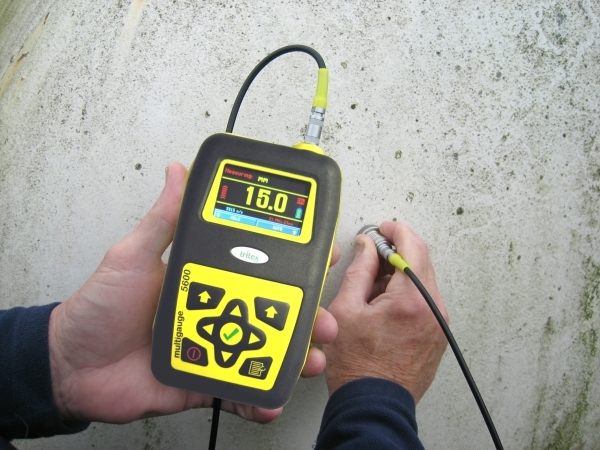

The Multigauge 5600 Ultrasonic thickness meter is a simple, robust ultrasonic thickness gauge designed for most common thickness gauging applications. The easy to use keypad allows operator interface whilst the bright full colour LCD display can be used in all light conditions. The moulded soft rubber surround feels comfortable, looks good and provides extra protection against knocks and scrapes. The gauge uses multiple echo to ignore coatings up to 6mm thick. . All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data – the result is a perfectly matched probe and gauge for enhanced performance. Additionally, the Automatic Measurement Verification System (AMVS) ensures only true measurements are displayed, even on the most heavily corroded metals. A protective leather case is also available
Description
The Multigauge 5350 GRP Thickness Meter is a simple, robust ultrasonic thickness meter designed to check the condition of Glass Reinforced Plastic (GRP) or Engineering Plastics. It can also be used on uncoated metal. The easy to use keypad allows operator interface, whilst the bright colour LCD display can be used in all light conditions. The moulded soft rubber surround feels comfortable, looks good and provides extra protection against knocks and scrapes. All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data – the result is a perfectly matched probe and gauge for enhanced performance.
Measurements can be logged using a grid or string format. The gauge will store up to 895 files, each containing 100 records. Each record can store either a string of 250 or grid of 16 x 16 measurements. The simple, easy to use menu guides the user through intuitive setup procedures.
The GRP thickness meter uses wireless technology to transmit the measurements to the PC where dedicated Communicator software allows the analysis of the results or easy production of templates using wizards. Measurements are stored in a .txt format so that they can be opened in other applications.
Measurements can also be displayed remotely on a PC up to 1000 metres away
Model To Choose - Please Write to us with your application and we shall be glad to assist on right Model - Marine and Non Marine Units
The Multigauge Ultrasonic thickness meter is a simple, robust ultrasonic thickness gauge designed for most common thickness gauging applications. The easy to use keypad allows operator interface whilst the bright full colour LCD display can be used in all light conditions. The moulded soft rubber surround feels comfortable, looks good and provides extra protection against knocks and scrapes. The gauge uses multiple echo to ignore coatings up to 6mm thick. . All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data – the result is a perfectly matched probe and gauge for enhanced performance. Additionally, the Automatic Measurement Verification System (AMVS) ensures only true measurements are displayed, even on the most heavily corroded metals. A protective leather case is also available
Model To Choose - Please Write to us with your application and we shall be glad to assist on right Model - Marine and Non Marine Units
MAIN FEATURES - 5600 UTG :
- Ignores coatings up to 6mm thick using multiple echo and up to 20 mm with Coating Plus+ selected
- Echo strength indicator
- Measurement hold feature
- Rugged, durable and robust
- Leather protective case available
- No zeroing required
- Large bright colour LCD display giving user information
- Automatic Measurement Verification (AMVS)
- Intelligent Probe Recognition (IPR)
- Easy calibration with menu driven buttons
- Easy to use clear graphic menu
MAIN FEATURES 5350 GRP :
- Measures GRP or all types of engineering plastic.
- Large colour LCD display giving user information.
- No zeroing required.
- Single crystal hard faced probe.
- Wireless data transmission.
- Displays measurements on a PC up to 1000m away.
- Easy calibration with menu driven buttons.
- Intelligent Probe Recognition (IPR).
- Echo strength indicator.
- Datalogging version with wireless data transmission.
- 3 year warranty.
- Free calibration for the life of the gauge.
SPECIFICATION:5600 UTG
| Sound Velocity Range: | From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs) |
| Probes: | Single crystal soft faced - 2.25 MHz, 3.5 MHz & 5 MHz |
| Measurement Range: | 1 - 250 mm (0.04” - 10”) depending on probe used |
| Probe Sizes: | 6 mm (0.25”), 13 mm (0.5”) & 19 mm (0.75”) |
| Measurement Mode: | Multiple Echo |
| Resolution: | 0.1 mm (0.005”) or 0.05 mm (0.002”) |
| Accuracy: | ± 0.1 mm (0.005”) or ± 0.05 mm (0.002”) |
| Display: | Colour LCD |
| Coatings Range: | Up to 6mm (Standard Mode)*; up to 20mm (Coating Plus+)* |
| Batteries: | 3 x disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCD |
| Battery Life: | Up to 50 hours continuous use using alkaline batteries |
| Gauge Dimensions: | 147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”) |
| Gauge Weight: | 325 g (11.5 ounces) including batteries |
| Environmental: | Case rated to IP65, RoHS and WEEE compliant |
| Operating Temp: | -10°C to +50°C (14°F to 122°F) |
| Storage Temp: | -10°C to +60°C (14°F to 140°F) |
SPECIFICATION:-5350 GRP
| Sound Velocity Range: | From 1000 m/s to 8000 m/s (0.0394 in/µs to 0.3150 in/µs) |
| Probe: | Single crystal hard faced - 1 MHz |
| Measurement Range: | 2 - 300 mm (0.04” - 11.8”) depending on the material measured |
| Probe Sizes: | 19 mm (0.75”) |
| Measurement Mode: | Single Echo / Echo - Echo |
| Resolution: | 0.1 mm (0.005”) |
| Accuracy: | ± 0.1 mm (0.005”) |
| Display: | Colour LCD |
| Storage Capacity: | 32 Mb |
| Data Transmission: | Wireless RF |
| Batteries: | 3 x disposable ‘AA’ alkaline batteries or rechargeable NiMH / NiCD |
| Battery Life: | Up to 50 hours continuous use using alkaline batteries |
| Gauge Dimensions: | 147 mm x 90 mm x 28 mm (5.75” X 3.5” X 1”) |
| Gauge Weight: | 325 g (11.5 ounces) including batteries |
| Environmental: | Case rated to IP65, RoHS and WEEE compliant |
| Operating Temp: | -10°C to +50°C (14°F to 122°F) |
| Storage Temp: | -10°C to +60°C (14°F to 140°F) |
