Film Viewer - LED - PortableBack

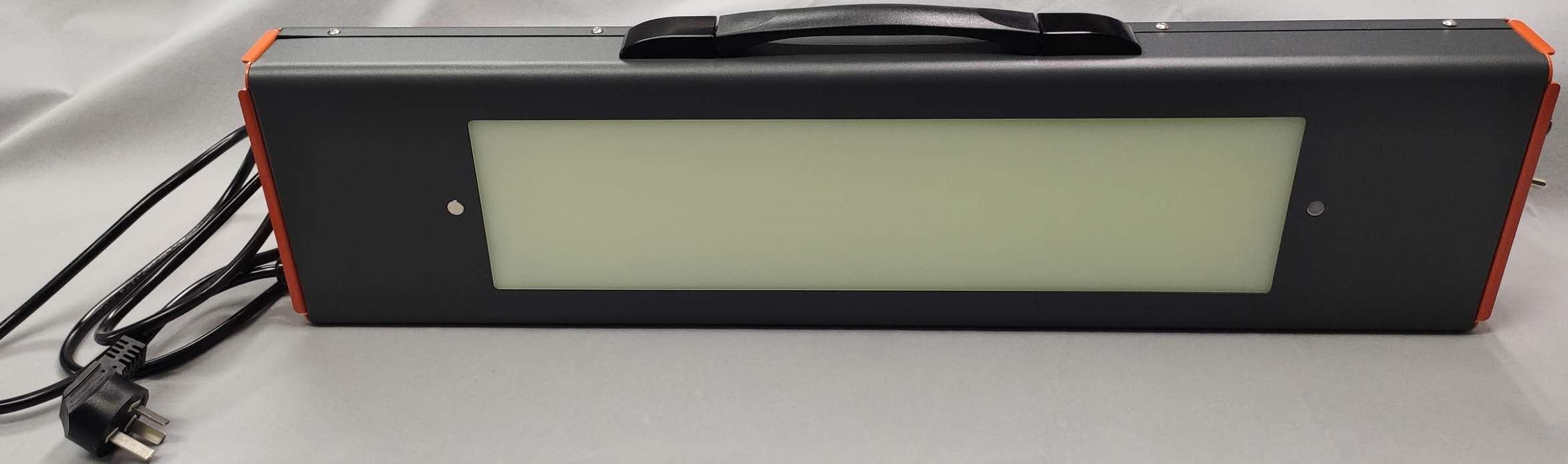

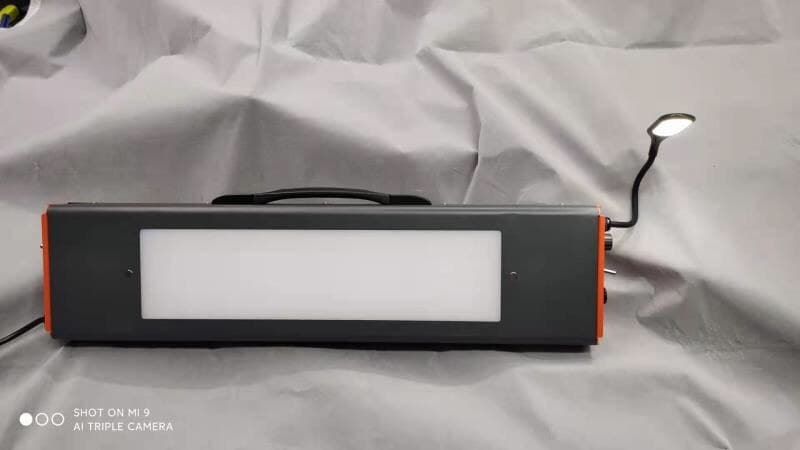

LED Fllm Viewer
LED FIlm Viewer - AC , Optional - Battery Operational - Portable ,
LED FIlm Viewer - AC , Optional - Battery Operational - Portable ,
| Model | PW-GA-V1 | PGW-V2 | ||
| Specification | ||||
| Operating Voltage | 85-264 VAC 50-60 Hz ( Only Direct AC) | 85-264 VAC 50-60 Hz ( Only Direct AC) | ||
| Power | 300W | 100W | ||
| Light Intensity | > 160,000Cd/m2 | > 100,000Cd/m2 | ||
| Film Density | ≤4.3D | ≤4.0D | ||
| Surface Temp | <18Deg C | <18Deg C | ||
| Uniform Viewing | 98% Full Screen | 98% Full Screen | ||
| Dimmer Controller | 0-100% - Full Intensity | 0-100% - Full Intensity | ||
| Control Mode | Direct on/Off , Foot Pedal Switch | Direct on/Off , Foot Pedal Switch | ||
| Cooling | Direct Air Fan Cool Internal Built | Direct Air Fan Cool Internal Built | ||
| Viewing Dimension | 100x400Mm - Without Mask | 100x400Mm - - Without Mask | ||
| Substrate Mask | 240x60mm - 1Pcs | 240x60mm - 1Pcs - Magnetic | ||
| Weight | Viewing Unit - 4.95Kg | Viewing Unit - 4.65Kg | ||
| Viewing Light | White | White / Green | ||
| Standard Compliance | GB/T1 9802-2005, ISO 5580: 1985, EN 25580: 1992 | GB/T1 9802-2005, ISO 5580: 1985, EN 25580: 1992 | ||
| Operating Option | Only AC - Direct | Direct AC || Car Battery Connx - 12VDC | ||
| * Model details & Specification are Subject to change without prior Notice - Please contact Sunrise Team for the same | ||||

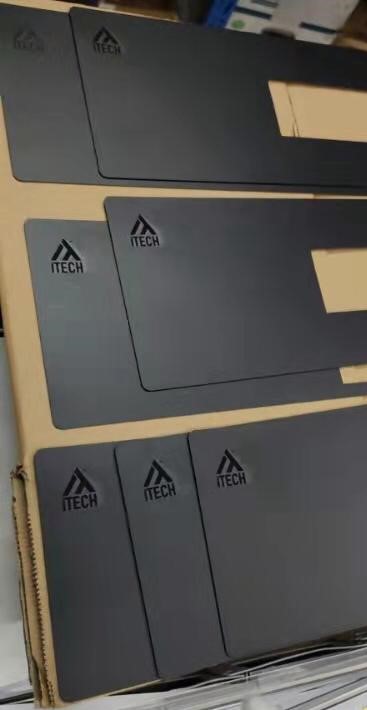

| * Optional - - Viewer Carry Bag - Non leather & (10Pcs) - Viewing size - Flexible Viewing Mask - for Model PGW-V2 | ||||
